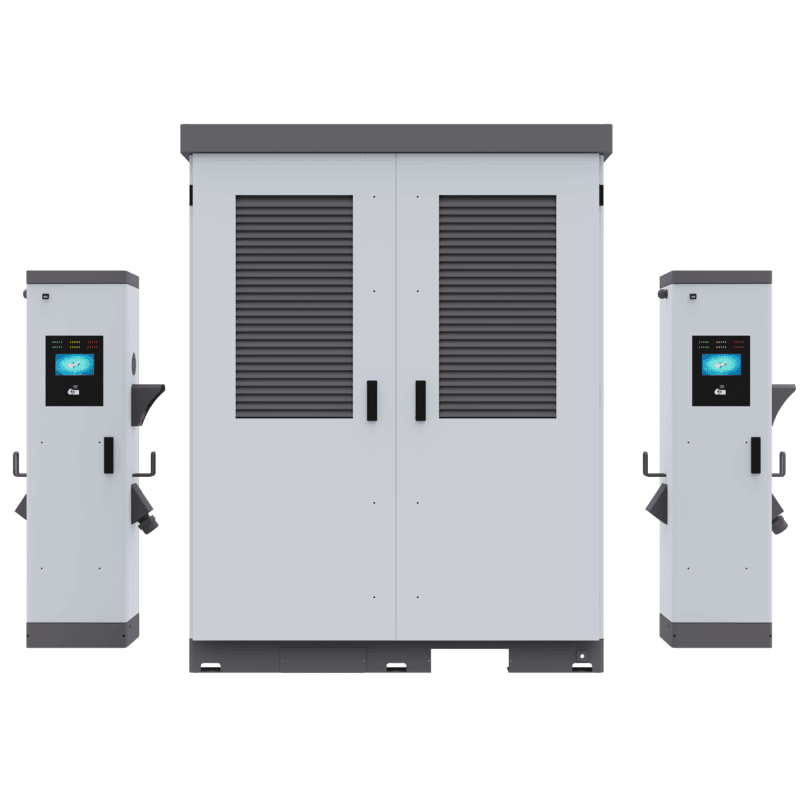

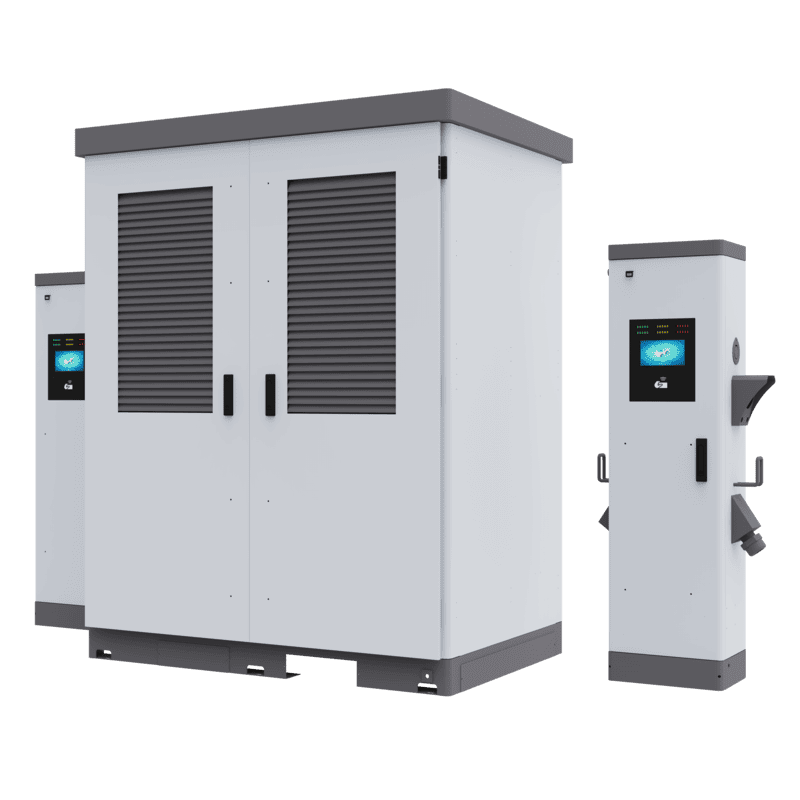

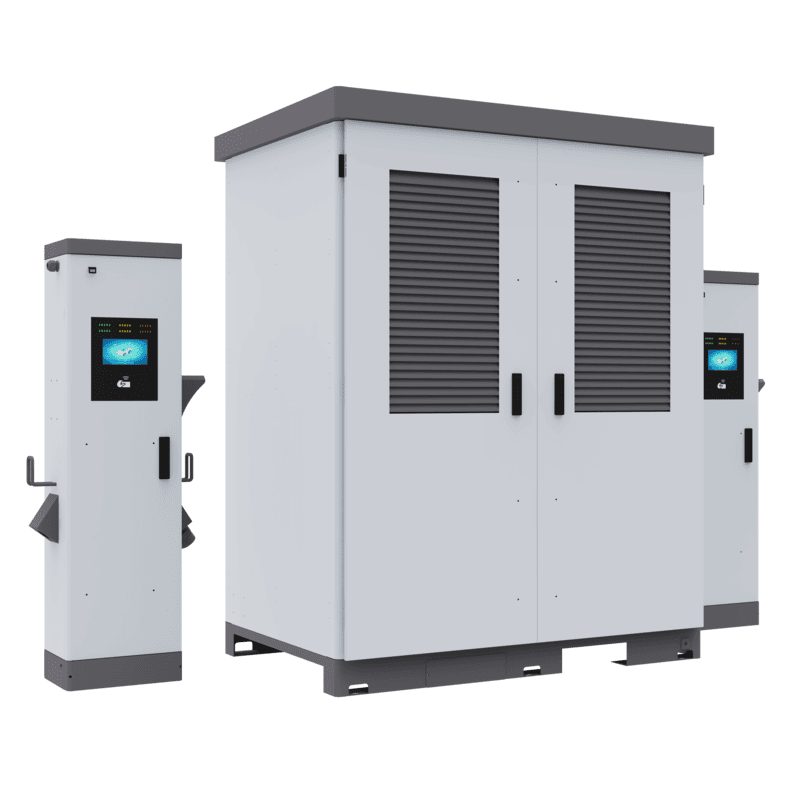

| CEVC 600KW-960KW Split DC charging pile-CE |
| Power | 600KW | 720KW | 800KW | 960KW |
| Module | 30KW | 30KW | 40KW | 40KW |
| Port | 10 | 12 | 10 | 12 |
| machine | Size(W*D*H) | Host machine： 1550mm*1100mm*2000mm | Defense Lv. | IP54（ outdoors） |
| Terminal：400mm*290mm*1500mm | Cooling | Forced air cooling |
| weight | Host machine（modular）：960KW about（935 kg） | cable length | 3m、 5m(optional) |
| Termina（ Gun with charge）：about（ 75 kg）/pc | Output terminal | 1 to 10、 12、 (optional) |
| Installation type | Floor type |
|
|
| input | Ac input voltage | AC400V±10％(3P+N+PE) | frequency | 45Hz~65Hz |
| Phase line | L1、 L2、 L3、 N、 PE | Power factor | ≥0.98 |
| Current THD | <5% |
|
|
| exportation | Rated output power | 600KW、 720KW、 800KW、 960KW(optional) | Single gun output power | 250KW Max |
| Output voltage | DC200V~ 1000V | efficiency | ≥95% |
| Single gun output current | 250A Max | measure | Dc meter measurement |
| environment | Operating temp | -30℃ to 50℃ （ 50℃to 70℃ Derated output） | humidness | 5 ％~95％（ No condensation） |
| Storage temp | -40℃ to +70℃ | Altitude | ≤2000 m （ Full load output） |
| screen | Display screen | 7 inch touch screen | Payment method | Plug and charge, swipe card, scan code (optional) |
| scram | Press to stop | Billing mode | Automatic charging, fixed power, fixed amount, fixed time (optional) |
| secure | Charging interface standard | IEC 62196-3 TYPE2 | Pile and car | PLC mode, in line with DIN70121/ISO15118 standard, configure OCPP1.6 protocol |
|
| communication |
| Charging connection mode | GB/T18487 | Communication mode | Ethernet,4G (optional) |
| Protection function | Grounding, over-current, over-voltage, over-temperature, short circuit, insulation, polarity, surge, emergency stop, access control, abnormal connection, alarm, etc |
