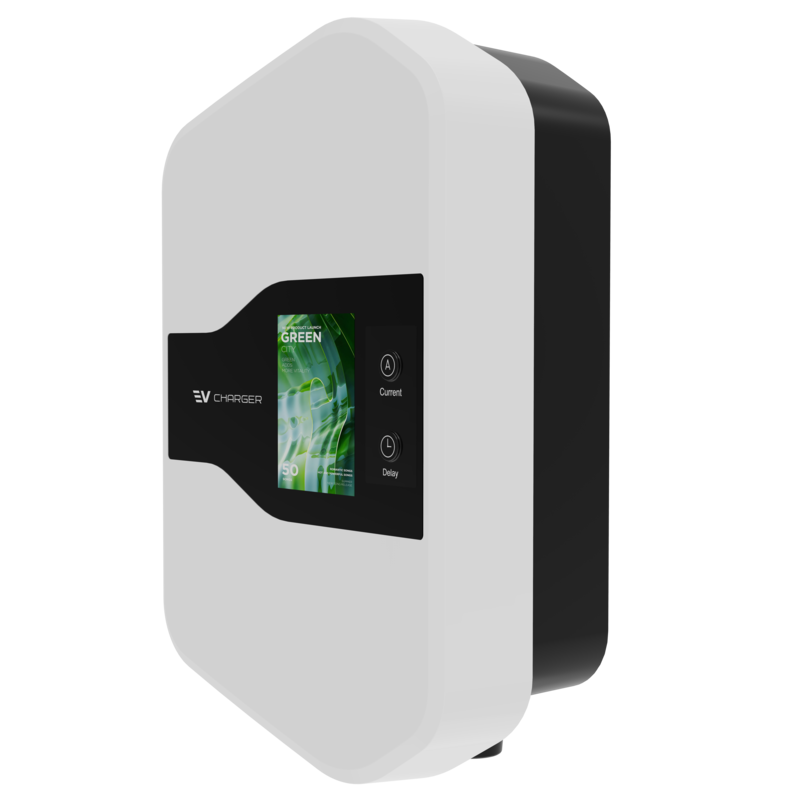

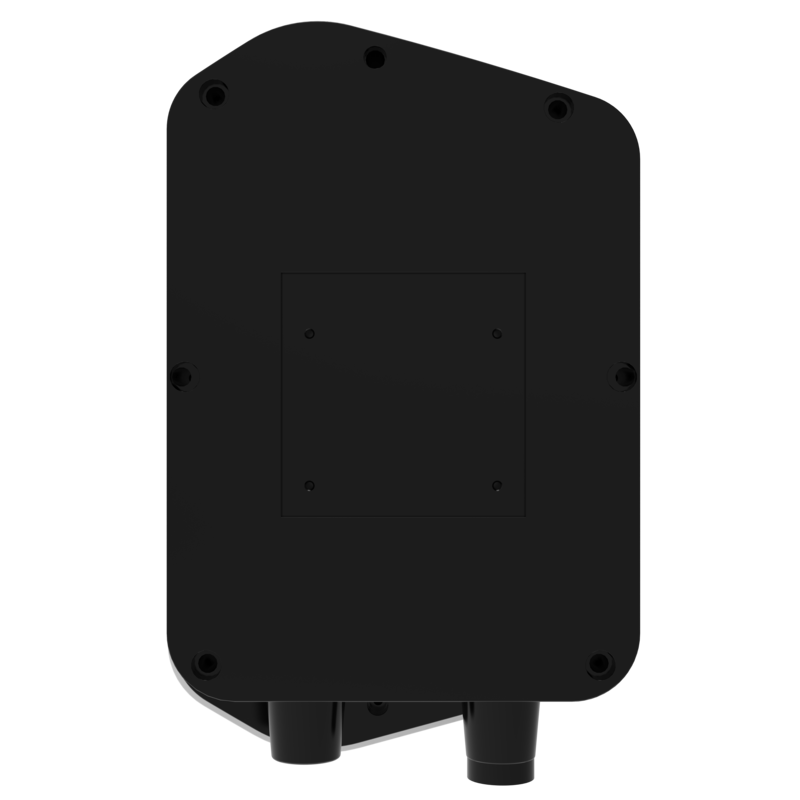

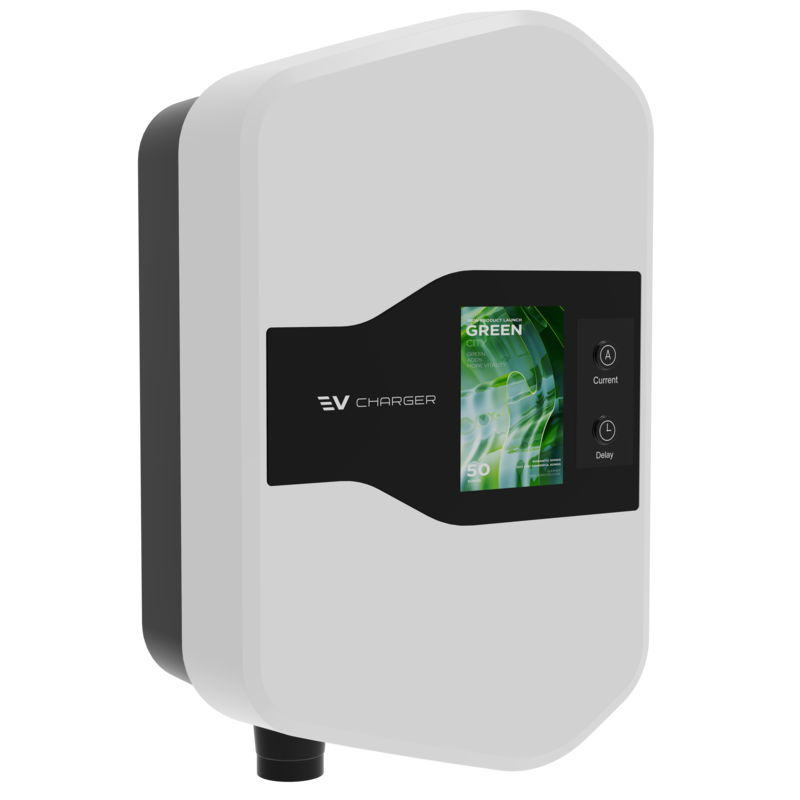

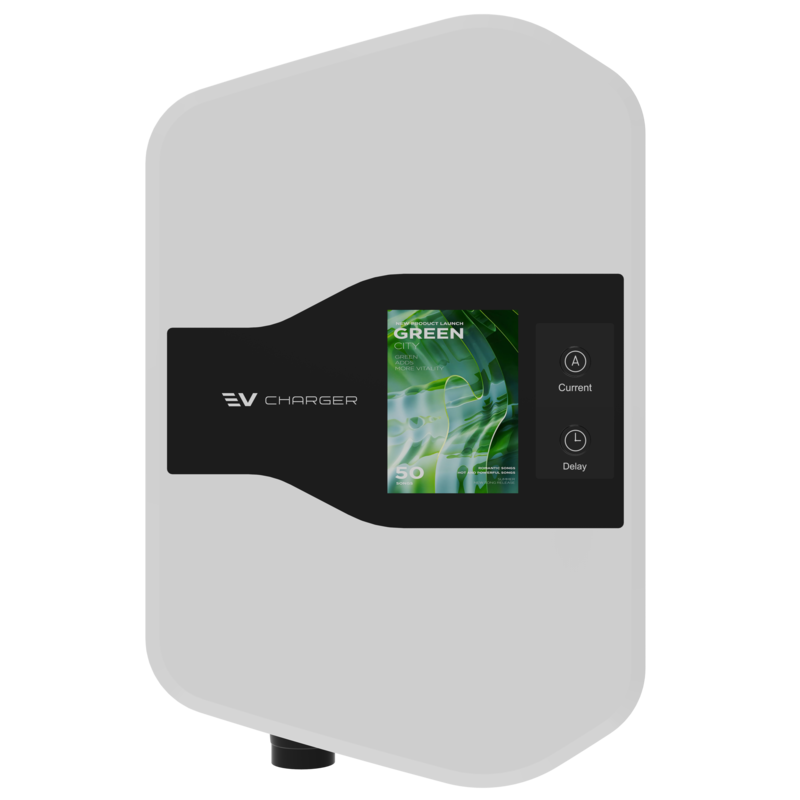

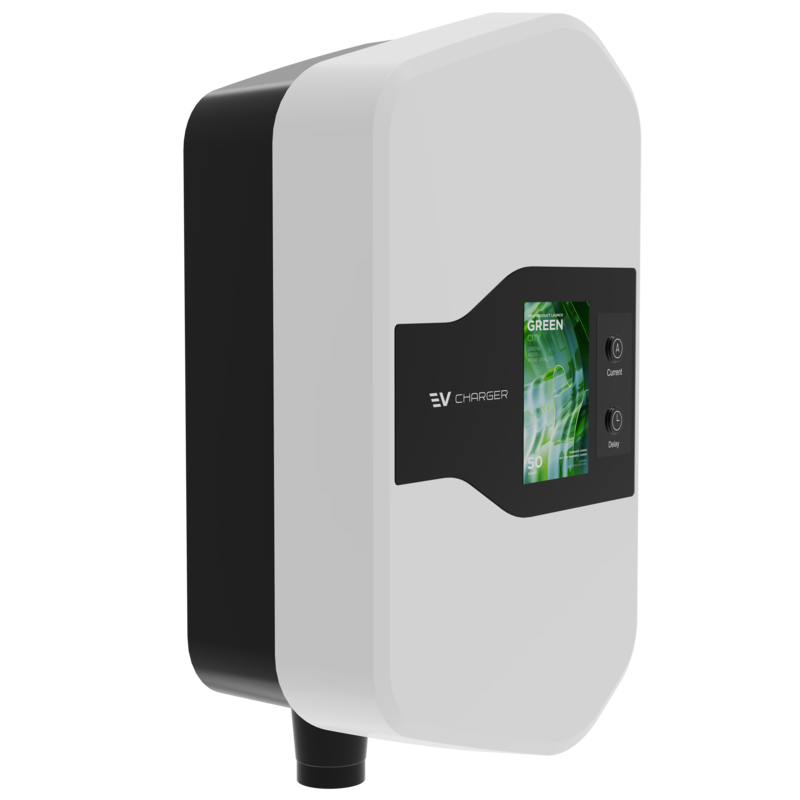

AC EV CHARGER CSD268 AC 22KW
二维码

手机扫一扫

If you are searching for a better deal for EV charging stations then you are at the right place. Chanspeed is the top-listed name of EV chargers provider.
message
Parameters
Features
Application
Scene Graph

ModelCEVC2213
power inputInput Type3-phase
Input Wiring Scheme3P+N+PE
Rated Voltage400VAC±10%
Rated Current32A
Grid Frequency50HZ or 60HZ
Power outputOutput voltage400VAC±10%
Maximum Current32A
Rated Power22KW
User interfaceCharge ConnectorType 2 Plug
Cable length5m
LED indicatorGreen/BLUE/RED
LCD displayDisplay screen, Indicator light
RFID ReaderISO/IEC 14443 RFID Card Reader
Start ModeAPP/Card Swipe
CommunicationBackendBluetooth
Safety and certificationEnergy MeteringEmbedded Meter Circuit Component With 1% accuracy
Residual Current DeviceDC 6mA+Type AAC 30mA
Ingress ProtectionIP65
Impact ProtectionIK08
Cooling methodNatural Cooling
Electrical ProtectionOver/Under Voltage Protection,Over Current Protection,   Short Circuit protection, Over/Under Temperature


Protection,Lightning Protection,Ground Protection
CertificationCE ROHS
Certification and conformityIEC61851-1, IEC62196-1/-2
EnvironmentMountingWall-mount/Pole-mount
Storage Temperature-40℃~+75 ℃
Operating Temperature-30℃~+50℃
Max Operating Humidity95%,non-condensing
Max Operating Altitude2000M
MechanicalProduct dimension26.5*17*8CM(W*D*H)
Package Dimension43*29.5*49CM/2PCS
Weight5KG(NET)/6KG(GROSS)
AccesoryN/A

1、High cost-effectiveness

Ideal for both home use


2、Safety and Durable

Weather-resistant features

IK08&IP65 waterproof enclosure


3、Easy handling

Elegant design and adorable


4、High Performance

Efficiency > 95%, Power Factor > 0.98

1. Multipurpose

2. Uninterruptible power supply

3. Electronic energy system

4. Emergency backup power supply

5. Emergency lights

6. Railway signals

7. Aviation signals

8. Security systems

9. Electronic equipment and equipment

10. Communication system power supply

11. DC power supply

12. Automatic control system
