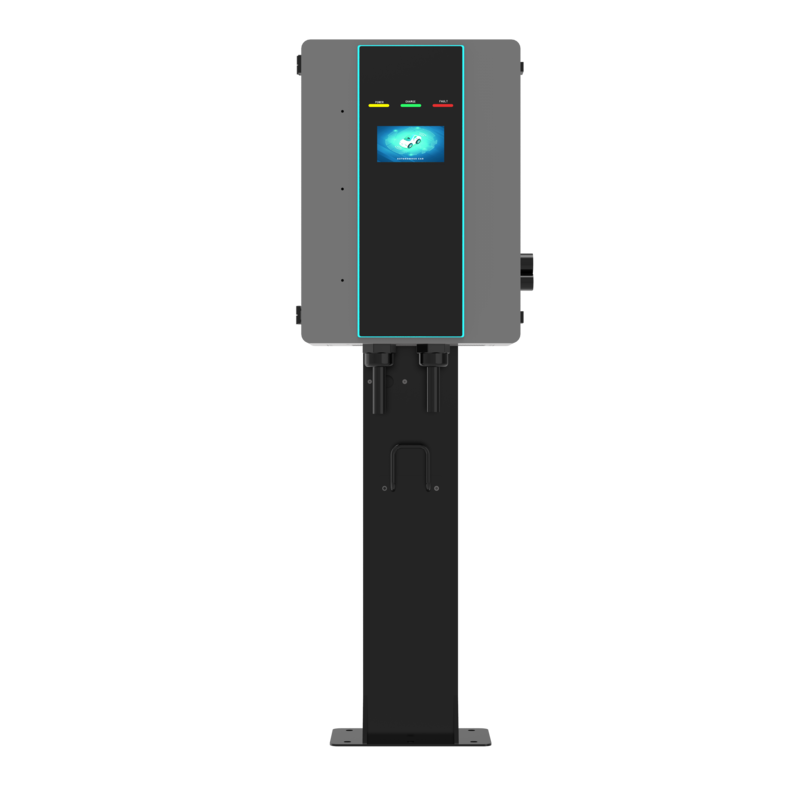

DC EV Charging CSD113 DC 20-40KW-Manufacturer of Global EV Charger and BESS

Parameters

Features

Application

Scene Graph

	Model	CEVC3113
	Market	Europe
power input	Input Type	3-phase
	Input Wiring Scheme	3P+N+PE
	Rated Voltage	400VAC±15%
	Max. THDI	5%
	Min.Power Factor	98%
	Grid Frequency	50HZ or 60HZ
Power output	Output voltage	150~1000VDC
	Maximum Current	100A
	Rated Power	20KW~40KW
User interface	Charge Connector	1XCCS1/CCS2/GB/T/ChAdemo optional
	Cable length	5m
	LED indicator	Green/BLUE/RED,Progress Indicator
	LCD display	4.3 Inch Touch Color Screen
	RFID Reader	ISO/IEC 14443 RFID Card Reader
	Start Mode	RFID Card/APP
Communication	Backend	Standard: Ethernet/WIFI/Bluetooth/4G
Communication	Charging protocol	OCPP-1.6J
Safety and certification	Energy Metering	Meter with 1%Accuracy
	Residual Current Device	Yes
	Internal Fuse	Yes
	Ingress Protection	IP54
	Impact Protection	IK10
	Cooling method	fan cooling
	Electrical Protection	Over/Under Voltage Protection,Over Current Protection, Short Circuit Protection, Over/Under Temperature


		Protection,Lightning Protection,Ground Protection
	Certification	CE ROHS
	Certification and conformity	IEC61851-1, IEC62196-1/-2, SAE J1772
Environment	Mounting	Wall-mount/Pole-mount
	Storage Temperature	-40℃~+75 ℃
	Operating Temperature	-30℃~+50℃
	Max Operating Humidity	95%,non-condensing
	Max Operating Altitude	2000M
Mechanical	Product dimension	650260350mm/65kg
	Package Dimension	870720500mm/ 83kg
	Weight	65KG(NET)/85KG(GROSS)
	Accesory	Cable holder, pedestal(optional)
