CSD-R2T 60kW/120kW DC + 22kW AC EV Charger | 3-Gun Fast Charging Station with CCS/CHAdeMO/Type 2

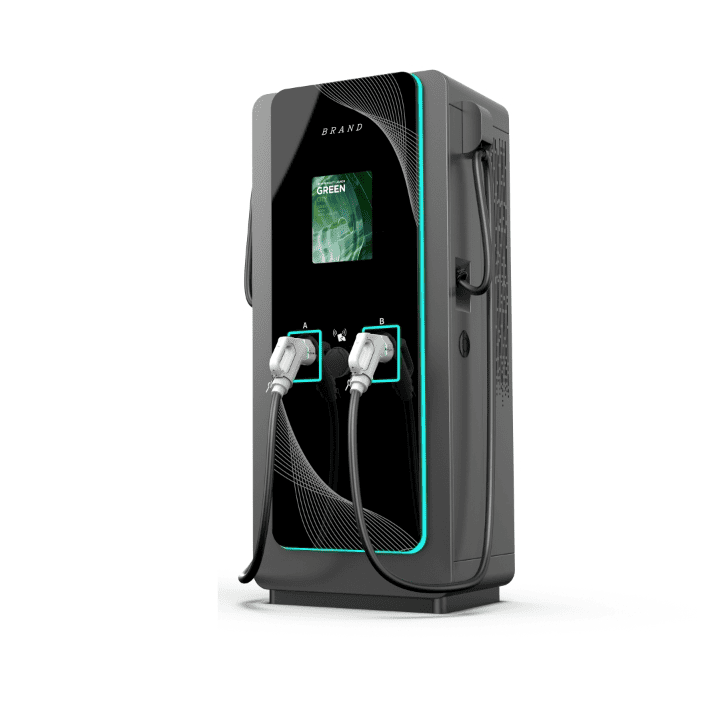

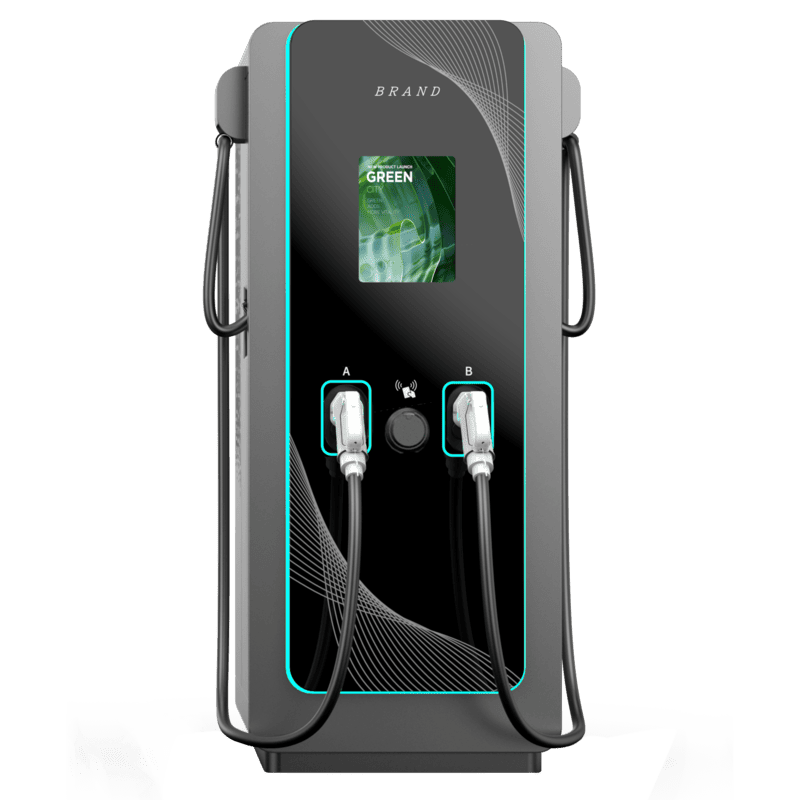

The CSD-R2T is a high-performance all-in-one EV charging station offering both DC fast charging and AC Level 2 charging in a single unit. With dual DC output (60kW or 120kW) and a 22kW AC output, it supports simultaneous charging via 3 connectors: CCS2, CCS1, CHAdeMO, and Type 2.Built with a 7-inch touch screen, RFID authentication, and OCPP 1.6J compatibility, the CSD-R2T enables smart, secure user access and seamless backend integration. Real-time energy metering with ±1% accuracy ensures billing transparency, while IP54 and IK10 protection ratings make it ideal for public or commercial outdoor use.The unit supports Ethernet and 4G communication, features advanced electrical protection (OV/UV, OC, OT/UT, SC, lightning), and uses intelligent fan cooling. With its floor-standing design and robust build, it’s the ideal choice for parking lots, commercial centers, fleet charging stations, and urban charging hubs.

message

Parameters

Features

Application

Scene Graph


power input	Input Type	3-phase
	Input Wiring Scheme	3P+N+PE
	Rated Voltage	400VAC±10%
	Max.THDI	5%
	Min.Power Factor	98%
	Grid Frequency	50HZ or 60HZ
Power output	Output voltage	150~1000VDC
	Maximum Current	200A/250A/300A
	Rated Power	DC 60/120KW AC 22KW 32A
User interface	Charge Connector	CCS2/CCS1/CHADEMO+Type 2
	No.of connector	3
	Cable length	5m or Optional
	LED indicator	Green/BLUE/RED,Progress Indicator
	LCD display	7 Inch Touch Color Screen
	RFID Reader	ISO/IEC 14443 RFID Card
User interface	Backend	Standard:Ethernet/4G
User interface	Charging protocol	OCPP-1.6J
Safety and certification	Energy Metering	Meter with 1%Accuracy
	Ingress Protection	IP54
	Impact Protection	IK10
	Cooling method	fan cooling
	Electrical Protection	Over/Under Voltage Protection,Over Current Protection, Short Circuit Protection,Over/Under Temperature Protection,Lightning Protection,Ground Protection
	Certification	CE ROHS
	Certification and conformity	IEC61851-1,IEC62196-1/-2
Environment	Mounting	Floor standing
	Storage Temperature	-40℃~+75℃
	Operating Temperature	-30℃~+50℃
	Max Operating Humidity	95%,non-condensing
	Max Operating Altitude	2000M
Mechanical	Product dimension	8106001800mm
	Package Dimension	11508901170mm/295KG/1209065cm/85KG
	Accesory	N/A

Three-in-One Charging Output
Supports dual DC fast charging (60kW or 120kW) + AC 22kW charging, enabling simultaneous charging for multiple EVs with different standards.
Wide Connector Compatibility
Equipped with CCS2, CCS1, CHAdeMO, and Type 2, covering nearly all EV models on the market.
Smart User Interface
Includes a 7-inch color touch screen, LED status indicators, and ISO/IEC 14443 RFID card reader for secure access and intuitive operation.
High-Efficiency & Accuracy
Integrated energy metering with ±1% accuracy ensures transparent billing and reliable usage tracking.
OCPP 1.6J Protocol Support
Seamless integration with backend systems via Ethernet or 4G, enabling remote monitoring, load balancing, and real-time data access.
Rugged Outdoor Performance
Built with IP54 waterproof and IK10 impact-resistant enclosures, capable of withstanding harsh outdoor conditions.
Advanced Protection System
Comprehensive safety features including over/under voltage, overcurrent, over/under temperature, short circuit, lightning protection, and ground fault protection.
Efficient Fan Cooling
Intelligent fan-based cooling system maintains optimal thermal performance under continuous operation.

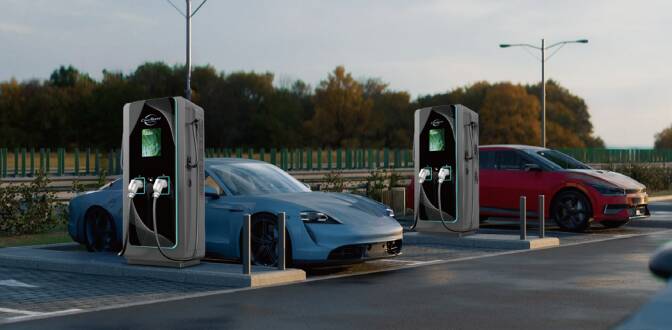

The CSD-R2T multi-standard EV charging station is designed for a wide range of public and commercial charging scenarios, including:

Public EV Charging Stations
Perfect for highways, city centers, and urban mobility hubs requiring mixed DC and AC fast charging capabilities.
Commercial Parking Lots
Adds value to malls, supermarkets, and business centers by offering fast and flexible EV charging options.
Fleet Charging Depots
Supports electric fleets with simultaneous AC and DC charging for cars, vans, and light-duty trucks.
Auto Dealerships & EV Service Centers
Provides rapid charging for test vehicles, new car deliveries, or after-sales maintenance zones.
Residential Communities
Ideal for shared or dedicated EV charging in large apartment complexes or gated communities.
Government & Utility Projects
Suitable for smart city deployments and utility-grade EV infrastructure development.
